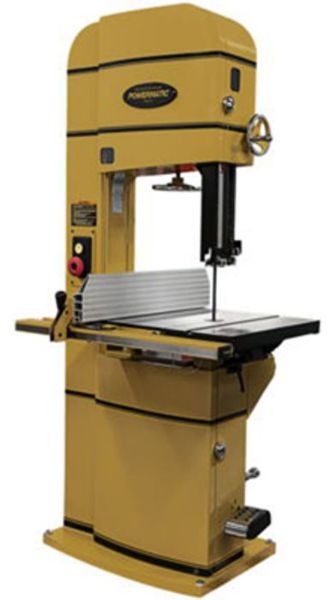

5HP, 3Ph, 230/460V (prewired 230V) TEFC motor, features induction, split-phase start
On/off magnetic switch with power indicator light and safety key
Two cutting speeds: 2,300 and 4,400 surface feet per minute
24" x 27" cast-iron table with 3⁄4"W x 3/8"D miter gauge slot, tilts 10° left, 45° right, 38" high
Blade tension release with electrical interlock;
This prevents the band saw from starting when the blade is de-tensioned
Solid cast-iron upper and lower wheels create the momentum needed for heavy resaw
Cast-iron trunnion assembly offers maximum rigidity for large work pieces
T-square design Accu-Fence® has complete adjustability for aligning to blade & squaring to table
Solid steel resaw post is included for optimum rigidity
High end blade guides with tool-less adjustment provides and increases accuracy
Four-sided blade guard for optimum protection
Integrated foot brake stops coasting blade
Cutting capacity: 18"W x 18"H, accepts 160" long blades 1⁄8" wide to 1-1⁄2" wide
Includes: band saw, enclosed base, one blade, adjustable miter gauge
Foot brake, blade guard, rip fence and resaw guide
460V operation requires an additional 460V magnetic switch
Powermatic part #PM1800B-043C (sold separatley)
