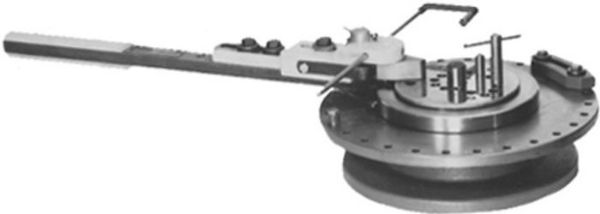

Di-Acro Hand Operated Bender

Multi-purpose machine quickly changes from one bending operation to another
Constructed of one-piece machined casting, with operating arm rotation and mounting plate
Forms round and flat bar stock, tubing
Includes bend locating gauge for multiple part duplication - angle stop
Determines degree of bend;
Locking pin for clamping material & center pin for one radius setup plus mount for other tooling
Specifications:
Round mild steel bar- 5/8"
Square mild steel bar- ½"
Steel tubing, 16 gauge- 1"
Standard iron pipe- .5 I.P.S.
Flat steel bar (flat)- ¼" x 2"
Flat steel bar (edgewise)- 1/8" x 1"
Angle- 1/8" x 1" x 1"
Channel- 1/8" x ½" x 1"
Radius capacity- 12"
Forming nose height- 1-1/2"
Center pin hole (diameter)- 1"
Leverage- 40"
