2 HP, 3 Ph, 230 volt, TEFC motor with magnetic control, power cord is not included
Two speeds: 44 and 88 RPM
Miters stops: 90° and 45° left and 45° right
Blade size: 14" diameter x 1-1/4" arbor, .14" thick, casted blade cover
Sturdy gear box design
Control handle with a safety spring loaded trigger switch starts and stops the machine
Double self-centering vise for burr-free cuts
Liftgate delivery required

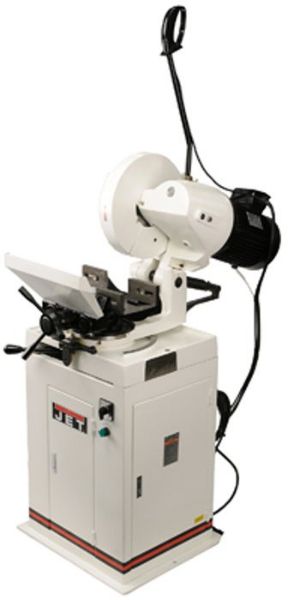

Includes: saw, enclosed steel stand, blade, dual vise and coolant system (coolant not included)
MACHINE SPECIFICATIONS
Cutting Capacities for Tubing
Round at 90°: 4-1/2"
Round at 45°: 3-1/2"
Rectangle at 90°: 5-1/2" x 3-3/4"
Rectangle at 45°: 3-1/2" x 3-1/2"
Square at 90°: 4-1/4" x 4-1/4"
Square at 45°: 3-1/2" x 3-1/2"
Cutting Capacities for Solid
Round at 90°: 2"
Round at 45°: 1-3/4"
Square at 90°: 2"
Square at 45°: 1-3/4"
Blade size (dia.): 14"
Coolant capacity: 3 gal.
Overall size: 43"W x 25"L x 75"H
Weight: 683 lb.
