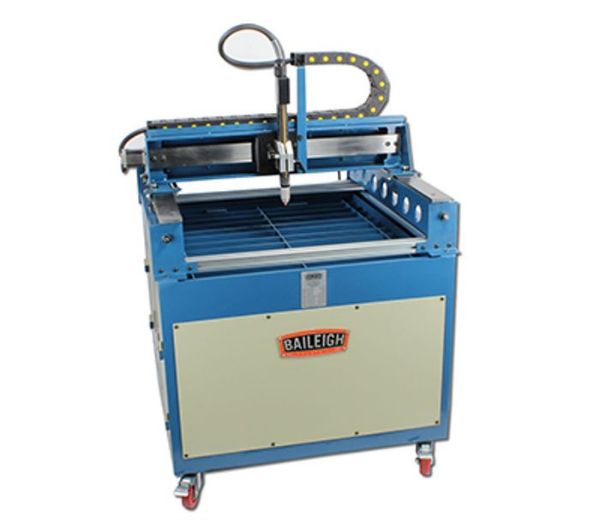

2’ x 2’ (610 x 610mm) cutting area
Includes user-friendly programming software (see more details below)
Control the torch using the handheld panel
Jog dial for the X and Y axes and program start and stop buttons
Durable, high-quality stepper motors drive the X axis (single drive) and Y axis (dual drive)
All motor controllers and electronics are enclosed
Industrial cable track on the X axis ensures smooth cutting movement
2 different torch-holders to accept both automated torches and handheld torches
Pre-cut flat bar grates support the material
Fully-welded steel frame will stay square for accurate cutting
Small footprint accommodates shops with limited space
5" caster wheels (2 stationary, 2 swiveling) let you move the table easily
Water bath with a ball valve drain collects dirt, debris, and smoke
Cabinet in the base with latched and hinged access doors
Plasma torch systems are sold separately
Shipped assembled
