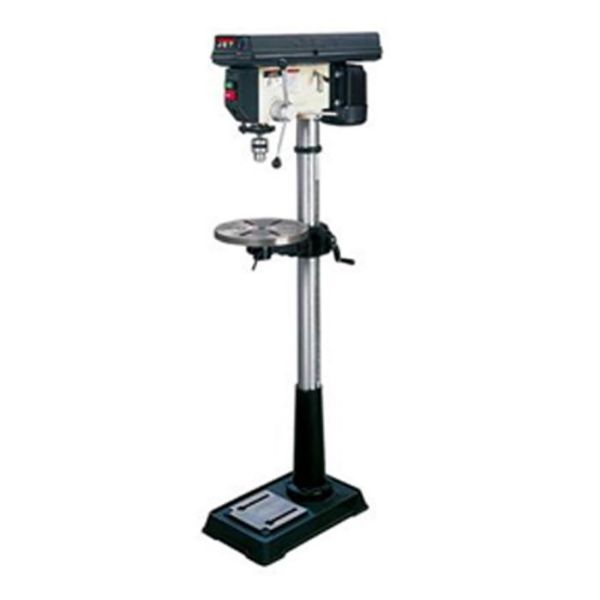

MODEL JDP-17MF
16 speeds 200-3,630 RPM
Hinged metal belt and pulley cover allows access to spindle for speed changes
Round, 13-3⁄4" diameter cast iron work table with “X" pattern mounting slots, tilts left or right
45 degrees
1⁄2" diameter external adjustment depth stop, with dual locking nut
Adjustable tension spindle return spring
Push button switch is located on drill head
5⁄8" drill chuck and key is included
Built-in work light, requires 40w bulb (not included)
MACHINE SPECIFICATIONS
Drilling capacity in steel: 5⁄8"
Swing: 16-1⁄2"
Spindle travel: 4-3⁄8"
Spindle distance to base: 49"
Spindle distance to table: 29-1⁄8"
Table size: 13-3⁄4" diameter
Spindle taper: MT-2
Column diameter: 3-1⁄8"
Base size: 11-1⁄8" x 19-5⁄8", shipping weight 178 lbs.
3⁄4 HP, 120/230V, single phase, TEFC motor, pre-wired 120 volt
