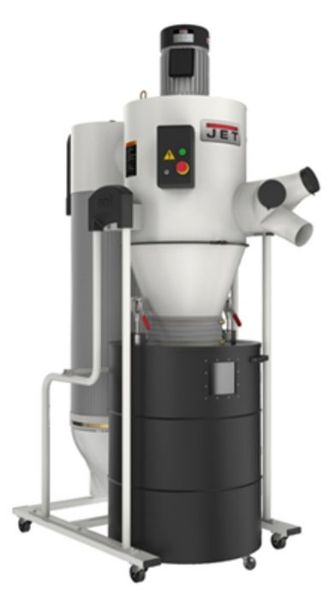

Two stage separation provides more working CFM than comparable horsepower single stage units
Heavy debris is pulled down to collection drum before debris stream reaches the filter
Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
Fine dust particles are filtered through pleated material that captures particles 1 µm & below
Heavy debris is captured in the 66 gallon drum that features quick release levers
As well as independent casters for quick emptying
Includes radio frequency remote control, works from up to 50 feet away
Remote timer settings allow system to run for two, four six or eight hours before automatic shut-off
Double paddle manual cleaning system quickly cleans the pleated filter
Swivel casters make it easy to move the unit around the shop
Shipped unassembled with all necessary hardware
Machine Specifications:
Motor: 3 HP, TEFC, pre-wired 230 Volts, 1 Ph
Sound Rating: 76 dBA
Airflow at 6" CFM: 1,963
Velocity at 6" FPM: 5,609
Filter Type: Cartridge and spunbond polyester
Filter Efficiency: 99% at 2 micron
Number of Air Inlets: one at 8", three at 4"
Collection Drum Capacity: 66 gallons
Drum Collection Bag: 23-5/8" diameter x 19-11/16" long
Overall Dimensions: 57"L x 33"W x 88"H
Weight: 268 lb.
