Vortex cone allows only fine particles to move to the filter chamber
Prevents the central airflow from floating chips into the filter chamber
Chips are better contained for increased packing density requiring fewer collection bag changes
Single-stage design for economical and quiet operation
Permanently lubricated, totally enclosed fan-cooled motors rated for continuous duty
Four casters stabilize each model and allow for total mobility
Specifications:

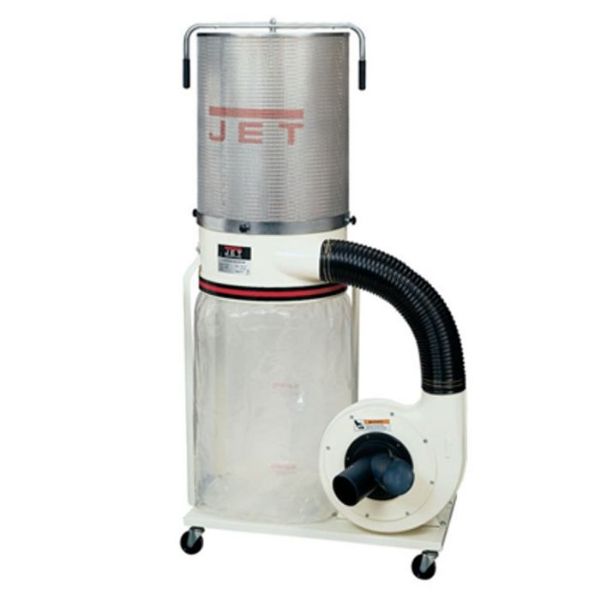

Model No.: DC1100VX-CK
Motor: 1-1/2HP, 1Ph
Voltage: 115/230V
Prewired 115V Prewired 115V
Sound Rating: 70-80dB
Airflow at 4"CFM: 1,100
Filter Type: 2 micron canister filter
Number of Air Inlets: One 6", two 4"
Collection Drum Cap. (cu. ft.): 5-3/10
Overall Dimensions (WxLxH): 20"x 37"x 72"
Weight: 120 lb.
