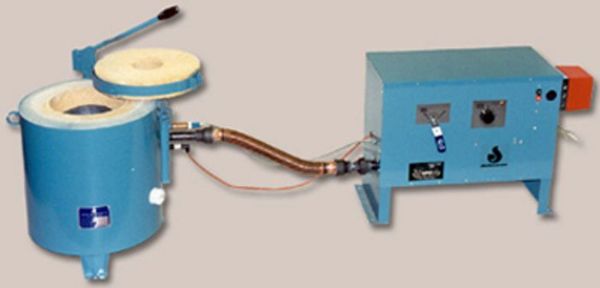

Fast melting operation for aluminum, brass, silver or gold
Controls are encased in metal housing along with push-button lighting feature
Includes: Blower, listed crucibles, spark ignition, gas regulator, safety gas valve and gas orifice
Thermocouple safety system unless otherwise specified
Equipment for natural gas use included unless propane gas hook-up is specified
THERMOCOUPLE TYPE:
Provides positive control in event of gas interruption, electrical, or air failure
Includes:
Baso switch, solenoid valve, thermocouple, direct spark ignition & air switch; comple twith furnace
SPECIFICATIONS:
Combustion chamber: 10"D x 12"H
BTU input per hour 900/900SS: 130,000/240,000
Gas supply connection 900/900SS: 3⁄4"/1" (specify natural or propane gas)
Maximum crucible capacity: 16 lb.
Temperature range: 1200 to 2300°F
Blower: 11,000 RPM, 1/30 HP, 115V
Overall dimensions: 21"H x 23" diameter
PLEASE SPECIFY NATURAL OR PROPANE GAS
