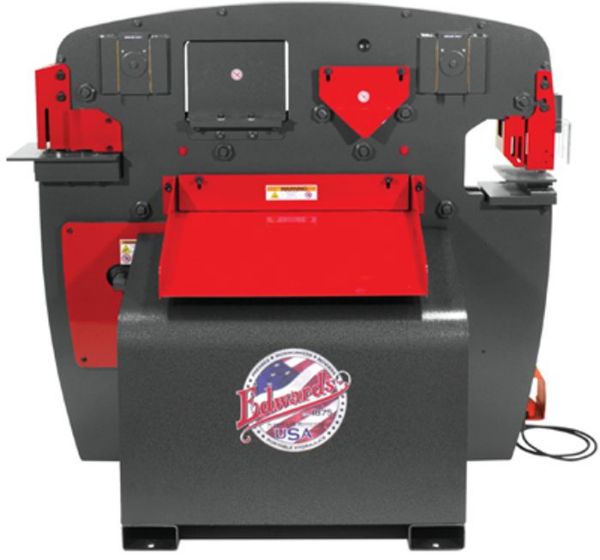

Edwards Hydraulic Ironworker, 65 Ton, 7.5 HP, 1 Ph, 230V

ANSI B11.5-1988(02) Compliant guarding
ETL/UL Approved controls
Integrated E-Stop, Lock-out/Tag-out
Optimized workstation heights for improved efficiency
Electric foot pedal with integrated jog control
Adjustable electric stroke control
Customize your ironworker with ten optional attachments – Call us for details
SPECIFICATIONS
Dimensions: 62"Wx45"Wx57"H
Motor: 7.5HP, 1Ph, 230V
Capacity: 65 Ton
Throat Depth: Punch: 9-3/4"
Open Station: 12"
Max Cap Punch: 1-1/16" Dia. in 1/4"
Max Cap Angle Shear: 5" x 5" x 3/8"
Max Cap Flat Bar Shear:
3/8" x 24"
1/2" x 14
1"x 4"
Hydraulics: 3,500 PSI
Oil Capacity: 17 U.S Gallon
Weight: 4,750 lb.
