SKU: 220032
MPN: IF-RL-30-635
Semiconductor laser;
All solid-state electronic design, a very bright modulatable laser for long distance requirements
Analog and digital modulation capabilities
Internal overdrive protection on inputs
Characteristics:
Linear polarization, 2 millimeter beam diameter, 2 milliradians beam divergence
May be used for:
Voice and AM/FM radio transmission, laser leveling experiments, light shows
Bar code scanning, particle counting, refraction
Reflection measurements & polarization experiments
Class IIIa laser, wavelength 635 nanometers, optical power 3.0
Digital bandwidth 1-500 kHz, analog bandwidth 1-500 kHz
Laser has connections for analog and digital inputs;
Accepts industry standard banana jacks & a 3.5 mm audio jack for audio & microphone inputs
Externally adjustable internal electronic amplifier with a variable gain from 1 to 50
Suitable for low-voltage microphone inputs and higher amplitude signals from AM/FM radios

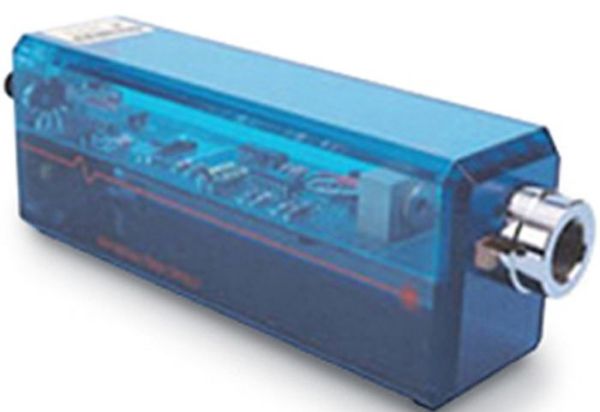

Impact resistant, see-thru, two tone blue acrylic case, with tamper resistant screws for safety
Dimensions 2-1⁄4" wide x 3" high x 8-3⁄4" long, weight .80 lbs.
Threaded mount for holding lenses, filters and diffraction gratings
Tripod mount – 1⁄4 -20 thread (camera tripod)
Rubber feet on case bottom to prevent slipping of laser
Labeling & safety requirements;
Compliant with U.S. Center for Devices and Radiological Health regulations
Includes: Full color operator’s manual with safety information and common experiments
Requires 120 volt single phase power
