Can cut inch or metric threads
Reversing motor and power longitudinal and cross feeds
Standard equipment: geared head with enclosed gear feed box, D1-4 camlock spindle
6" 3-jaw direct mount chuck with reversing jaws, 8" 4-jaw chuck, steady rest, 12" face plate
4-way tool post, splash guard, threading dial, follow rest, centers & headstock center sleeve
Inch/metric change gears, tool box, safety shield and tools; includes cabinet stand

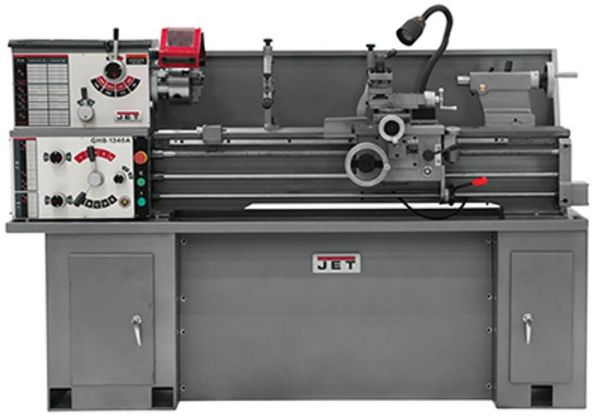

Type - Gear Head
Swing Over Bed (in) - 13"
Swing Over Cross (in) - 7-3/4
Swing Thru Gap (in) - 18-3/4
Distance Between Center (in) - 40"
Hole Thru Spindle (in) - 1-3/8
Spindle Taper (with sleeve) - MT-5 (MT-3)
Tailstock Taper - MT-3
Spindle Nose (in x TPI) - D1-4 Camlock
No. of Spindle Speeds - 8
RangeofSpindleSpeeds (RMP) - 70 – 2,000
No. of Long & Cross Feeds - 40
Range Long Feeds (in/rev) - 0.0036 – 0.1005
RangeofInchThreads (TPI) - 4 - 112
Number of Metric Threads - 27
Overall Dimensions(LxWxH/in) - 71" x 32" x 47"
Main Motor - 2HP, 1PH, 230V
Shipping Weight (lbs) - 1015
Coolant System Part # 45-0320 $355.00 Sold Seperately
