1 HP, 120V, 1 Ph, variable speeds 250- 4,000 RPM motor with on/off switch
Large 12-1⁄2" swing capacity
Easy front read panel access to speed control
Patented belt tensioning system for easy and quick speed changes, sets the belt at the correct
tension every time for maximum power transfer
Swing over bed: 12-1⁄2"
Swing over base: 9-9⁄16"
Distance between centers: 16-1⁄2", with extension: 42"
Drive spindle thread count: 1" -8 TPI, RH thread
Drive spindle thru hole: 3⁄8"
Head and tailstock taper: 2MT

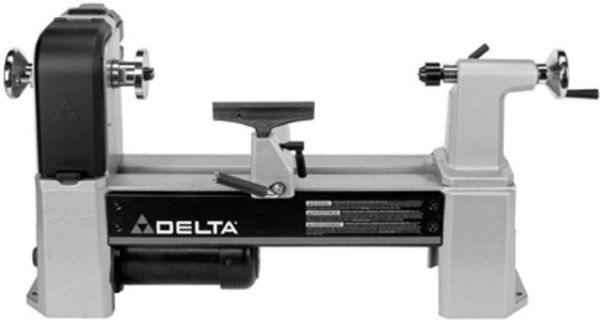

Includes: lathe, motor belt, tensioning system, 6" and 10" tool rest, spur center, chrome 3" face
plate, tool rest base, knock-out bar, live center,wrenches and instruction manual
