1 HP, TEFC, 115/230 volt (pre-wired 115 volt), 1 Ph motor
Variable speed range: 400 to 3,000 RPM
36 indexing positions, easy to read RPM readout
Swing over bed: 14-1/2", swing over tool rest: 11"
Working distance between centers: 40", optional bed extension increases distance to 60"
Spindle thread: 1" x 8 threads per inch
Headstock and tailstock taper #2MT, hole through spindle: 3/8", tail stock bore: 5/16"
Quill travel on tailstock: 4-1/4"
Acme thread in tailstock, improved tailstock quill locking with anti-rotation key
Sliding headstock pivots 360° for outboard turning with seven positive locking positions at:
0°, 30°, 60°, 90°, 120°, 180° and 270°

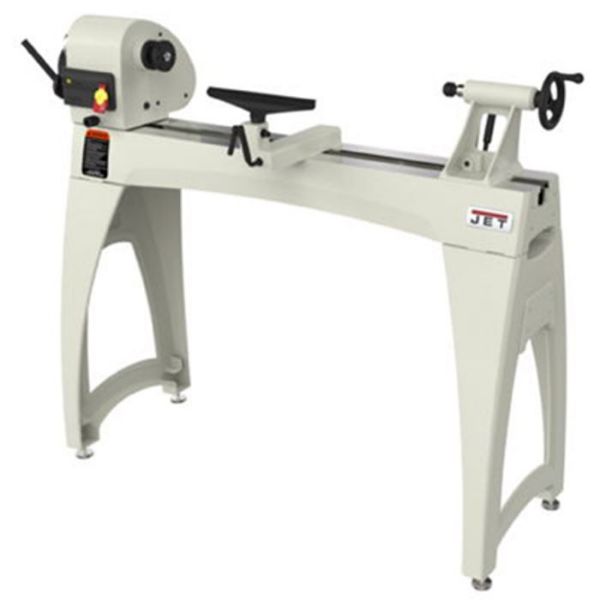

Includes: lathe, 12" tool rest, 6" face plate, spur center, knockout bar
Live center, spindle and indexing locks and wrench
