1 HP, TEFC, 115 volt (pre-wired), 1 Ph motor
Variable speed range: 60-3,600 RPM
Three variable speed ranges: 60-900 RPM, 110-1,800 RPM and 220-3,600 RPM
24 indexing positions, smooth forward to reverse transition
Innovative quick change belt system
Swing over bed: 12-1/2", swing over tool rest: 9-1/2"
Working distance between centers: 20-1/2", with optional extension bed: 42"
Spindle thread: 1" x 8 threads per inch, spindle bore: 3/8"
Spindle Taper: MT2, tailstock taper: MT2, tailstock quill travel: 2-1/4", high quality live center
Digital readout

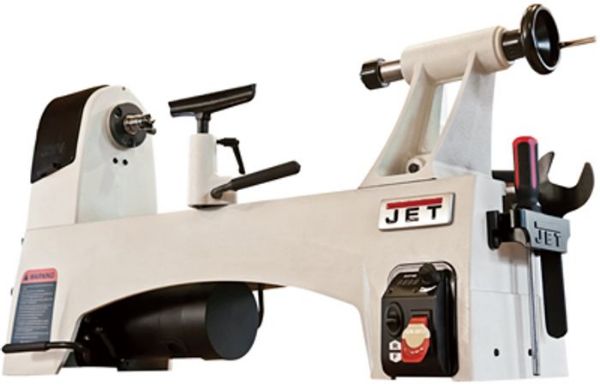

Includes: lathe, motor, tool rest, tool storage rack, wrench
Knock-out bar, 3" face plate and tailstock live center
