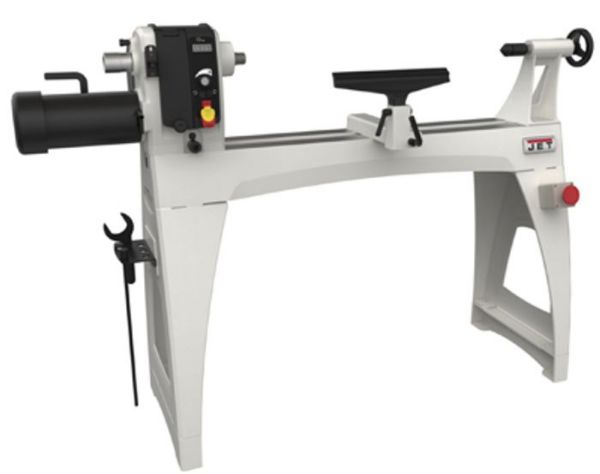

2HP, 230 volt, single phase input only, TEFC motor, variable speed & two speed models available
Features V-belt drive, two spindle speeds:
High 120-3,200 RPM, low 40-1,200 RPM, digital speed display
Swing over bed: 18-1/2", swing over tool rest 14-1/4"
Working distance between centers: 40", cast iron bed
Spindle thread: 1-1/4" x 8 threads per inch, spindle taper: MT2
Quill travel: 4-1/4", quill taper MT2
Spindle bore: 5/8", tailstock bore: 3/8"
Sliding headstock pivots 360° with seven positive locking positions
36 indexing positions, 10° increments
On/off paddle switch and movable remote switch with emergency stop
Includes: lathe with headstock, tool support, and tailstock, legs, spur center
Single live bearing center, live cone center, knockout rod, faceplate, tool rest extension
Faceplate wrench, tool shelf and four-inch riser blocks
