1.5 HP, TEFC, 230 volt, 3 Ph motor, 1720 RPM
Two speed, electronic variable speeds: low 0 to 1,200 RPM and high 100 to 3,200 RPM
Digital readout for speed adjustment
Swing over bed: 16-1/2", swing over tool rest base: 12-7/8"
Working distance between centers: 39" with single bearing center, 37" with live cone center
Spindle thread inboard: 1-1/4" x 8 TPI, spindle thread outboard: 3/4" - 16 (LH)
Forward and reverse spindle direction, built-in spindle lock
Headstock taper: #2 MT, hole thru spindle: 3/8"
Tailstock taper: #2MT, bore: 5/16", quill travel: 4-1/4", quill thread: Acme, 3/4"-10
Headstock slides anywhere along the bed with 360° rotation
Positive stops at 0°, 30°, 60°, 90°,120°,180° and 270°
Cast-iron legs, bed, headstock and tailstock, steel headstock spindle, tailstock quill is hardened
HRC20 steel, with etched scale

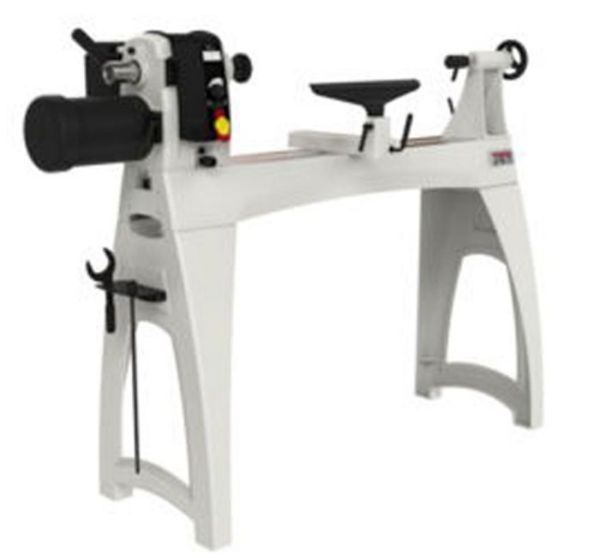

Includes: lathe with headstock, tool support, tailstock, legs, spur center, live center, levelers
Live cone center, knockout rod, faceplate, tool rest extension, faceplate wrench, & tool shelf
