Quick change triple bearing revolving center, 2MT tailstock mounting
Fits all makes of lathes
Threaded center accepts either a bolt or screw;
Enabling the center to be used to mount wooden plugs, disks or mandrels as support pieces
Center may be used for quick centerless squares or rounds up to 5⁄16" for spindle applications
Large stepped cone designed to accommodate centerless rounds up to 1-1⁄2"
Stepped cone may be reversed to wedge fit hollow sections from 1" to 1-1⁄4"
Reverse mounting of cone allows wedge fit for hollow sections of work
1⁄4" diameter miniature extension center is designed to support thin work or small delicate turnings
All separate centers that fit into the Nova Live Center have a 2MT taper
This is so they can be directly mounted to 2MT Tailstock spindle

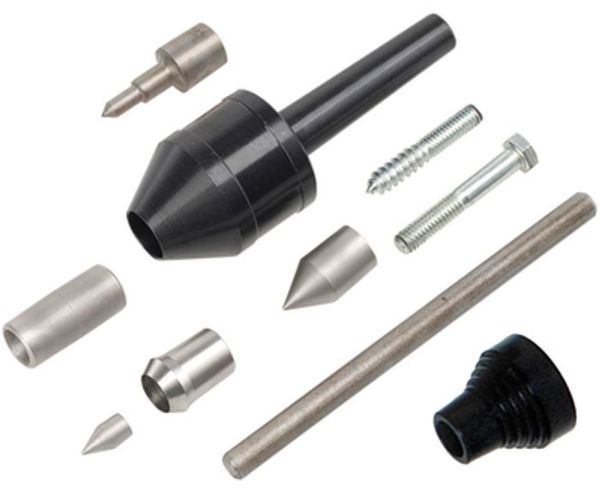

Includes: live center, reversible stepped cone center, 60° center, hollow cup and point center
Miniature extension and adapter, center screw and bolt
