14 Amp, 1.5 HP, 1 Ph, TEFC 115 volt motor, 1,720 RPM

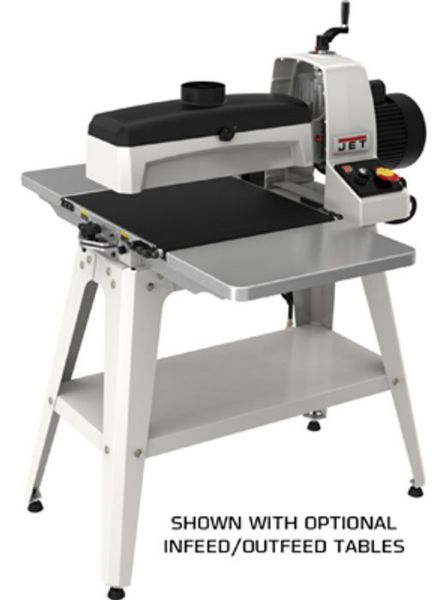

Single sanding drum sander, drum size: 5" diameter x 16" long, maximum width 32" in two passes
Sandsmart™ control continuously monitors the load on the drum motor
Automatically regulates the conveyor speed, separate conveyor and sander motors
Redesigned conveyor system pulls the workpiece thru the sander instead of pushing
Conveyor speed rate: 0 to 10 FPM, maximum board thickness: 3"
Minimum board length: 2-3/8", minimum board thickness: 1/32"
Top wheel adjusts drum height by 1/16" per rotation
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed
Dust hood includes an integrated channel that mirrors the shape of the drum
As well as directs chips and dust to the 4" collection port
Requires a minimum of 400 CFM effective dust collection
Toolless take-up clips makes changing abrasives quick and easy
Sturdy open base steel stand
Includes: sander and open base floor stand
