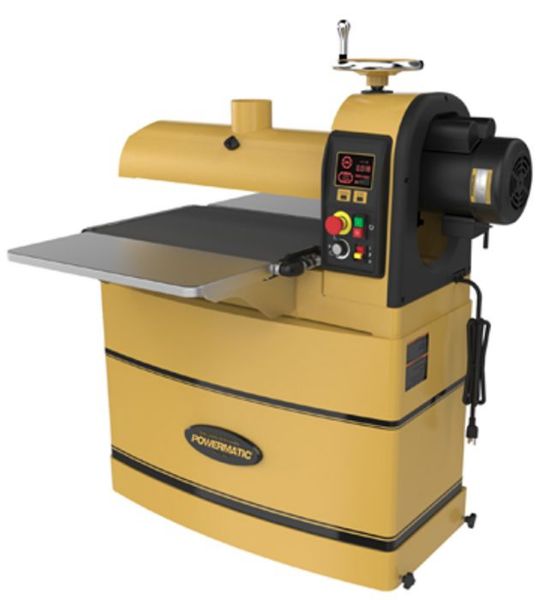

14 amp, 1.75 HP, 1 Ph, 115 volt, TEFC motor
5" diameter single sanding drum, 1,720 RPM drum speed, 0 - 10 FPM conveyor speed
4" maximum board thickness, 44" maximum board width, 2-3/8" minimum board length
1/32" minimum board thickness
Integrated L.E.D. control panel shows power, belt speed and DRO
Independent feed and drive motors provide exceptional sanding control
Infeed and outfeed tables provide 37-1/2" or workpiece support
Steel hood with 4" dust port provide excellent dust collection (requires dust collection, 800 CFM)
Belt tracking is designed to reduce the need for manual adjustment
Sealed and permanently lubricated drum ball bearings for longer life
Emergency stop for quick shut-off
Integrated casters make it easy to move around the shop
Includes: sander, infeed and outfeed tables
