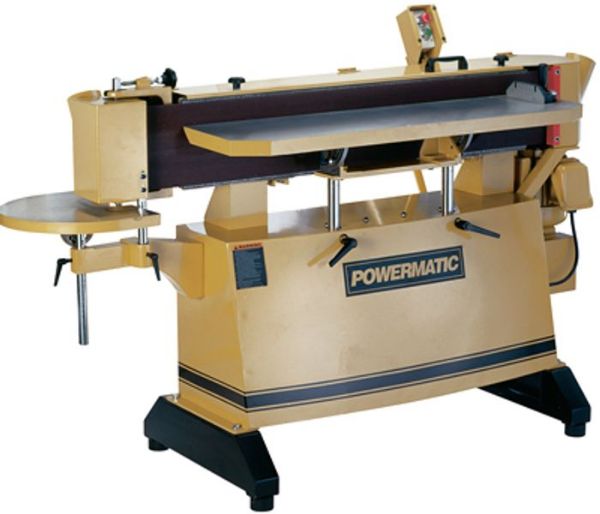

3 HP, 1 Ph, 230 volt motor with magnetic starter
Belt speed: 3542 feet per minute
Oscillations per minute: 24, oscillating edge travels 8" in vertical height to accommodate most
Precision balanced 9" diameter drive drum and 4" diameter rubber coated idler pulley
Large radius end table has 6" vertical travel and tilts 45°
Large 11-3/4" x 48" table tilts up to 5° in and up to 45° out
Hinged guard opens for infinite length sanding
Cast-iron platen is a generous 9-1/2" x 48" and covered with graphite for production sanding
Rugged bearing-assisted tensioning device for fast belt changes and quick tracking adjustments
Accepts 9" x 138-1/2" sanding belts
Heavy-duty oscillating gearbox and shaft for long maintenance-free use
Dust collection requires 1,100 CFM, dual 4" outside diameter dust ports
Liftgate delivery required
Includes: sander, motor, two 4" dust ports, tilting main, end tables & platen with graphite pad
