SKU: 491021
MPN: JSS-120A60

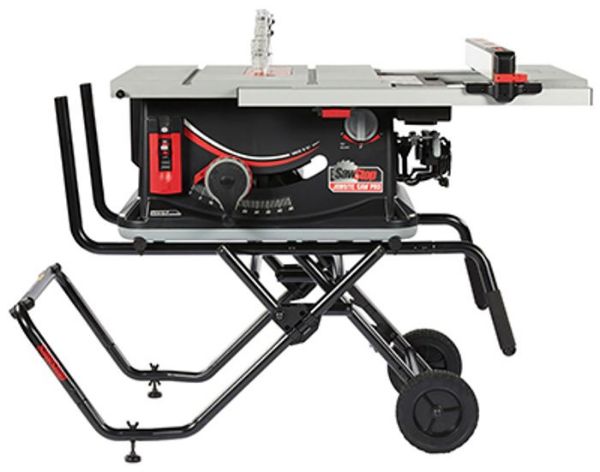

SawStop patented safety system detects contact between skin and blade
1.5 HP, 15A, 1Ph, 120V universal motor, 4,000 RPM
10"diameter x 5/8" arbor saw blade, bevel angle -1 ̊ to 46 ̊
Dado capacity 8" diameter x 13/16" wide, requires dado brake cartridge sold separately
Maximum depth of cut at 0 ̊- 3-1/8", at 45 ̊-2-1/8"
New: Deeper table, extended dimensions 43-5/16" W x 24-5/8" D
New: Included active dust collection blade guard protects against kickback
Uses blade turbulence to collect above-table dust
Advanced under-table shrouding maximizes dust extraction
Quick tilt allows you to tilt the blade easily and quickly to your ideal angle in 1 ̊ increments
Convenient onboard accessory storage drawer
One-turn elevation system raises and lowers the blade in just one turn
T-style high/low fence with Ergolock;
Attach the new quick-change low fence for safer rip cutting of smaller workpieces
Dust ports come standard both in the blade guard and below the blade
Mobile cart opens and collapses easily with foot petal
Tools weights: 113 lbs. with cart
Includes: saw with collapsible rolling cart, miter gauge, see-thru blade guard
Active dust collection blade guard, riving knife, push stick, 10" blade
Hi-low fence with Ergolock, table insert and standard brake cartridge
