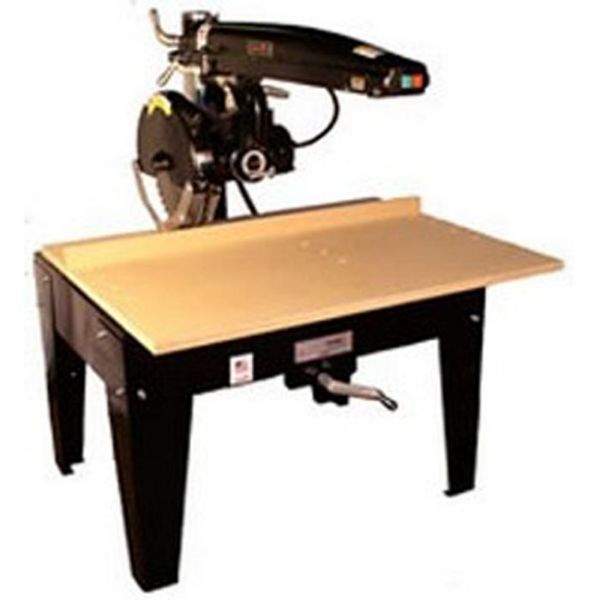

Radial Arm Saw, 14″, 5 HP/3 Phase/ 208-230-460V

TEFC motor, 3425 RPM, automatic brake system, magnetic starter with overload and low voltage
controls
Upfront push button operator controls
Adjustable arm stop, upper and lower blade guards, anti-kickback attachment, automatic arm return
device
Arbor nut and steel blade collars
Heavy gauge steel frame and legs
1" thick MDF table top
Please specify voltage when ordering
Blade sold seperately
MACHINE SPECIFICATIONS
Mfr. No.
HP . . . . . . . . . . . . . . . . . . . .5
Phase . . . . . . . . . . . . . . . . . . .3
Voltage . . . . . . . . . . . . . . . .208/203/460V
Motor Enclosure . . . . . . . . . . .TEFC
RPM . . . . . . . . . . . . . . . . . .3425
Brake . . . . . . . . . . . . . . . .Automatic
Blade Size . . . . . . . . . . . . . .14"
Arbor . . . . . . . . . . . . . . . . . . .1"
CUTTING CAPACITIES
Max. Out Rip . . . . . . . . . .37-7⁄8"
Max. Crosscut, 1" Stock . . .24"
Max. Miter at 45°, 1" Stock . 15-1⁄2"
Max. Depth of Cut at 90° . .4-1⁄8"
Max. Depth of Cut at 45° . . .1-3⁄4"
