1.75 HP, 1 Ph, 115/230 volt (pre-wired 115 volt), 4,200 RPM motor
Poly-V belt drive system reduces vibration and maximizes efficiency
Hinged motor cover for quick access to the interior of the cabinet
Left tilting arbor, accepts 10" diameter x 5⁄8" blades, push-button arbor lock for blade changes
Maximum depth of cut at 90°: 3-1⁄8", at 45°: 2-1/8", maximum rip left of blade: 12"
Maximum rip right of blade: 30" and 52"
Dado capacity: 8" diameter x 13⁄16" wide
Cast-iron table work surface features a beveled edge
Blade surround and collection hose provide an unobstructed path for maximum dust collection
Requires 350 CFM, connects to 4" dust port
Sturdy miter gauge pivots 60° to either side, allowing easy adjustment for a full range of cuts
Exclusive Accu-Fence® provides rigidity and precision
Ergonomically designed 7" handwheels, easy to read bevel scale

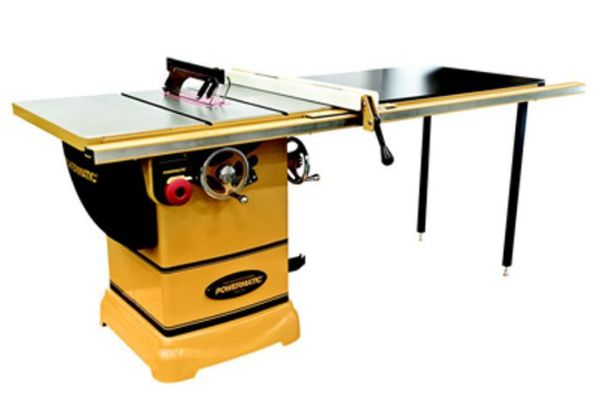

Includes: saw, motor, miter gauge, Accu-Fence® for 52" rip right of the blade
Front guide rail, cast–iron extension table and legs
