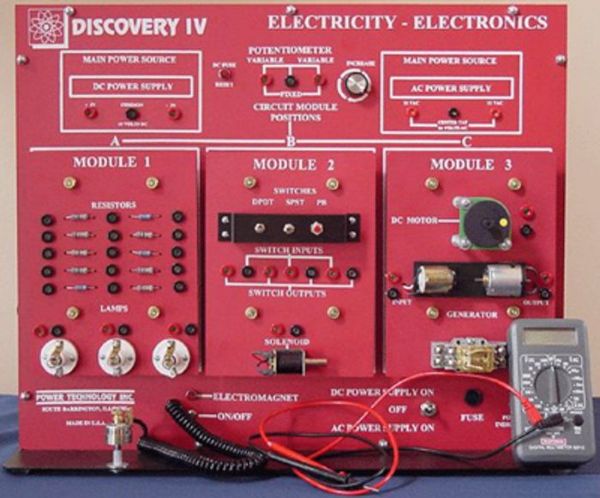

Provides students with hands-on opportunity to explore the fundamentals of electrical and
electronics technology
All components are pre-mounted on component board for ease of set-up as well as component inventory
control
Trainer includes an on-board AC and DC power supply
Power light indicator and safety fuse protect students and equipment
Experiments provide a visual end result and questions for self-evaluation
Curriculum includes: reading symbols, schematics, Ohms Law, voltage, current, poteniometers,
experiments on AC/DC voltage, series and parallel circuits, solenoids, relays and motors
Optional add-on modules for additional training and experiments in Switching Applications
(#73-0098) and Automotive Circuitry (#73-0100) are available for this trainer
Recommended for grades 7-12, curriculum package will accommodate up to 20 students and provide 7
days of activities, with 3 additional days of optional activities
Includes: trainer, connections, tools, student curriculum, pre-tests, post-tests, word activity
sheets, instructor’s manual, connections and tools
Requires 120 volt single phase power
