Provides students with a training experience in the basic laws of fluids that govern the operation
and application of pneumatic devices

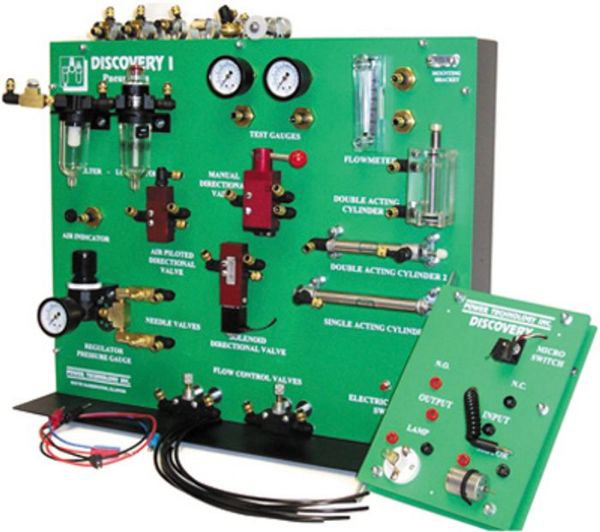

All components are mounted on the front of the trainer panel for ease of operation and inventory
A full range of testing instrumentation and components as found in industry
Components feature quick-disconnect fittings; do not require tools to complete circuits
Requires shop air for operation (compressor not included)
Curriculum includes: reading graphic symbols and methods of notation which are used in pneumatic
diagrams, experiments in flow control, directional valves, force, area and pressure and system
circuit design
Recommended for grades 7-12, curriculum package will accommodate up to 20 students and provide 7
days of activities, with 3 additional days of optional activities
Includes: trainer, air lines, connectors, student curriculum, pre-tests, post-tests, word activity
sheets and instructor’s manual
Requires approximately 40 PSI of air to operate
