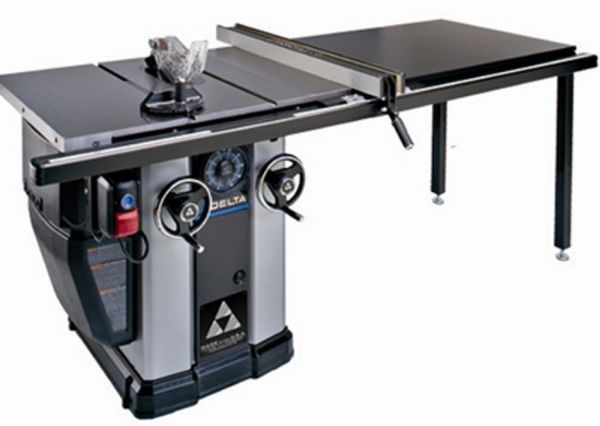

Delta 10″ Left Tilting Unisaw, 5HP, 1PH, 230V, w/52″ Fence

4,000 RPM
10" x 5⁄8" arbor left tilting blade, 0 to 45°
Maximum depth of cut at 90°: 3-1⁄8", maximum depth of cut at 45°: 2-1⁄8"
Table distance in front of blade at 1-1⁄4" depth: 15", from center of blade: 18-1⁄2"
Maximum width of blade: 13⁄16"
Table height: 35"
Table size with extension wing and table board: 31" x 82"
Cast iron top size including wings: 31" x 40"
Table board size: 31" x 42"
5HP, 1 phase, 230 volt motor with 52" Biesmeyer fence
