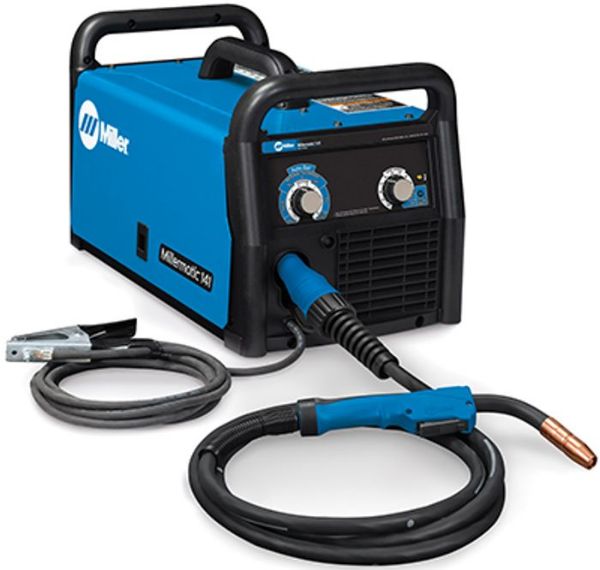

Wide output range of 30–140A
Auto-set automatically sets your welder to the proper parameters, wire size and material thickness
Allows you to weld with precise settings
Four taps with wire feed tracking offer control similar to infinite voltage control
Welds materials up to 24 gauge - 3⁄16" (4.8mm) thick
Braking system uses 4" and 8" spools, and adapts for 1 lb. spool
Wire sizes, solid or stainless .023–.030", flux cored .030-.035"
Overload protection shuts down system if airflow is blocked or the duty cycle is exceeded
Gas not included
Standard equipment:
Power cord with plug, 10´ – M10 Miller Gun and cable assembly, 10´ work cable with clamp
Factory installed gas solenoid valve, extra contact tips, sample spool solid wire
1 lb. spool adapters and set-up, regulator and gas hose and operations video
Specifications:
Rated Output: 90A/18V/20% Duty Cycle
Input Power: 20A@115V/1Ph/60Hz
Wire Feed Speed: 15-360/ipm
