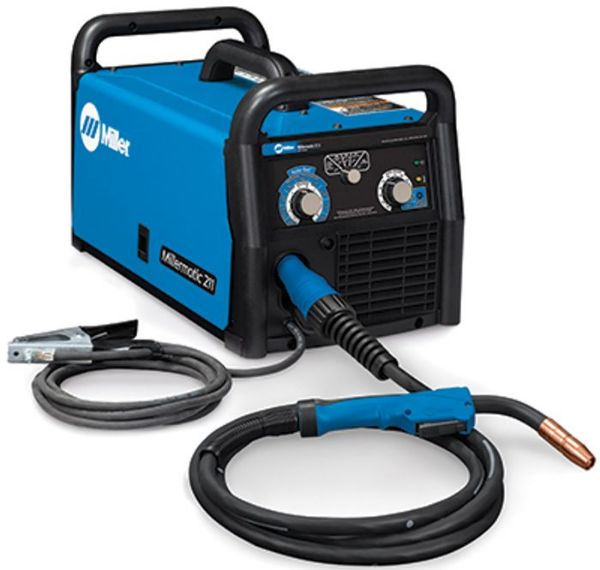

Advanced Auto-Set™ includes five wire/gas combinations
Portable, at 38 lbs.
Multiple voltage plug
Quick Select™ drive roll makes setup quicker
Smooth-Start™ provides a smooth, spatter-free start
Comes Complete With:
Power source
6.5’ power cord with MVP plugs for 120V and 240V
10’ M-100 MIG gun and cable assembly
10’ work cable with clamp
Flow gauge regulator and gas hose for argon and AR/CO2 mix
Hobart® spool of .030 in. (0.8 mm) solid wire
Two contact tips for .030 in. (0.8 mm) wire
Quick Select™ drive rolls for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire or
.030/.035 in. (0.8/0.9 mm) flux-cored wire
Material thickness gauge 229895
Hook-and-loop cord wraps
Specifications:
Rated Output: 120V/115A/19.8 VDC/20% Duty Cycle, 240V/150A/21.5 VDC/40% Duty Cycle
Input Power: 120V/24.3A/50/60Hz,1Ph, 240V/16.6A/50/60Hz, 1Ph
Wire Feed Speed: 60-600"/min
