Gives you the freedom to weld any process- MIG, flux-cored, AC/DC TIG, Pulsed TIG and Stick
Setup and switching processes are fast and easy, all while ensuring excellent arc quality using
either 120 or 240 volt power

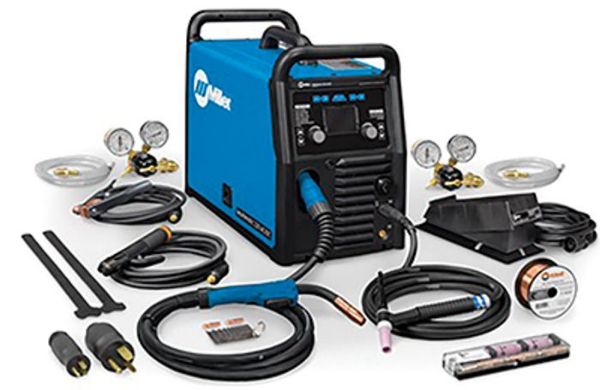

Includes:
Welder, 6.5’ power cord and MVP™ adapter plugs for 120V and 240V
10 ft MDX™-100 MIG welding gun, 13’ cable electrode holder
25 mm Dinse-style connector, 12.5’ Weldcraft™ A-150
(WP-17) TIG torch with 25mm Dinse-style connector
RFCS-14 HD foot control with 20’ cord 10’ work cable with clamp and 25 mm Dinse-style connector
Two Argon and AR/CO2 mix regulator/flow gauge with hoses, spool of Hobart® .030" solid wire
Two contact tips for .030" wire, Quick Select™ drive roll for .024" or .030/.035" solid wire
.030/.035 flux cored wire, AK2C tIG torch accessory kit
Material thickness gauge, hook-and-loop cord wraps
Specifications/Rated Output:
Rated Output:
Mig - 105A at 19.2V, 60% Duty Cycle; 200A at 24V, 20% Duty Cycle
TIG - 130A at 15.2V, 40% Duty Cycle
Stick - 90A at 23.6V, 40% Duty Cycle
Input Power: 120/240V, 1Ph, 50/60/HzCurrent Type:
AC/DCWeld Output: CC/CVWire Feed Speed: 1.5 m/min - 15.2 m/min - 60 IPM - 600 IPM
