Squarewave output with AC balance control features;
Adjustable penetration & cleaning action while increasing arc stability on various aluminum alloys
Helps eliminate tungsten spitting and arc rectification
Dual digital meters with alpha/numeric display and fan on demand feature
Dig control allows the arc characteristics to be changed for specific applications & electrodes
Built-in pulse control enhances weld bead and puddle control for improved quality
Reduces burn through, coordinates the addition of filler materials & lessens the warping effects
Auxiliary 115V power receptacle feature is located on the front panel
Three position polarity switch provides a single AC range for aluminum and magnesium
DC electrode negative for TIG, and DC electrode positive for Stick
Standard built-in preflow:
.02 seconds will purge the weld area prior to welding; Adjustable postflow
Spoolmate spool gun

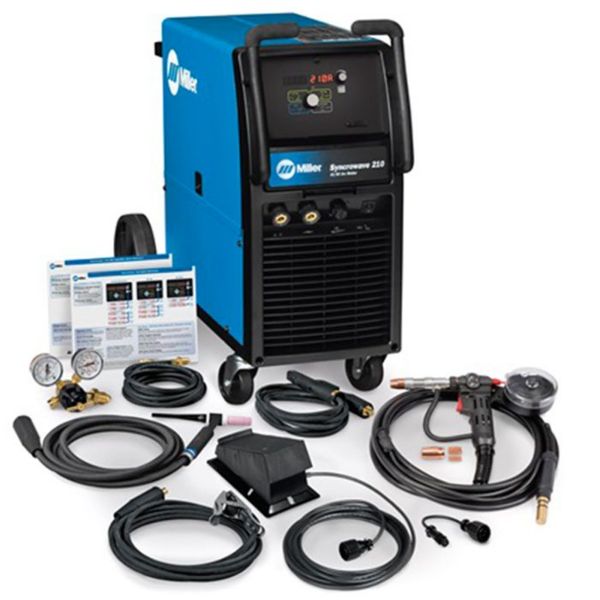

Standard equipment:
Power source with primary cord, No.39 running gear, 150A TIG torch with quick-connect
Spoolmate 150 series spool gun, 12’ work cable with clamp and quick-connect
Electrode holder and quick-connect, RFCS-14 control with 20’ cord, gas regulator
Gas hose, handbook and calculator
Specifications:
Rated Output: 125A/15V/60% Duty Cycle
Rated Input: 54 A@208-230V/1Ph/50-60Hz
