SKU: 250026
MPN: 907710002
This item is not available for purchase to our non-school customers
For non-school pricing and other product options:
Please call us at (800) 323-8484 or email sales@paxpat.com
Autoline™ Power Management Technology
manual linking, providing convenience in any job setting
Lift-Arc™ provides TIG arc initiation without the use of high frequency
Features include:
A full function remote control, Fan-On-Demand™ power source cooling system
Thermal overload protection, Built-in gas solenoid, Digital meter, Single amperage range
Simple to use operator interface, Hot Start™ adaptive control
Low OCV stick reduces the open circuit voltage when power source is not in use
Power factor corrected(PFC) for optimum performance
Stick-Stuck detects if the electrode is stuck to the part
Superior stick arc performance

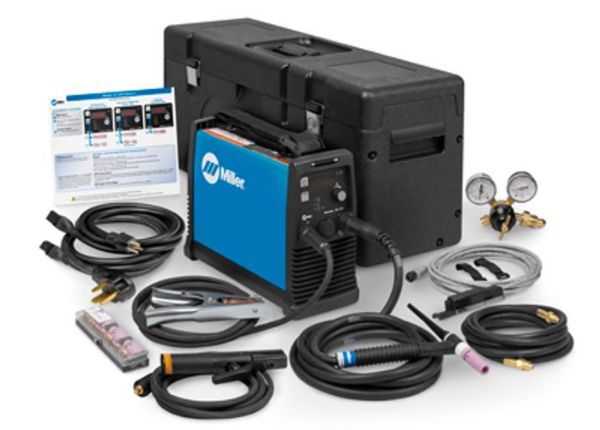

Package includes:
Maxstar 161 STL power source, 6.5 ‘ 120V and 240V power cords, X-CASE™
RCCS-6M remote fingertip control
Weldcraft™ A-150 (WP-17) 12.5’ TIG torch with connector
Stick electrode holder with 13’ cable and 25mm Dinse-style connector
Work clamp with 10’ cable and 25mm Dinse-style connector
Flow gauge regulator with gas hose, AK2C accessory kit, Handle/shoulder strap
Specifications:
Stick Rated Output: 90A/23.6V/30% Duty Cycle
TIG Rated Output: 130A/15.2V/30% Duty Cycle
Stick Input Power: 23.16A@120V/22.55A@240V/1Ph/50-60Hz
TIG Input Power: 14.61A@120V/15.05A@240V/1Ph/50-60Hz
