Designed for light fabrication, maintenance and repair, auto body & farm/home
Color Screen featuring Auto-Set™ Elite
Gives you the freedom to weld any process- MIG, DC TIG, and DC stick
Setup and switching processes are fast and easy, all while ensuring excellent arc quality using
either 120 or 240 volt power
Welds up to 3/8" mild steel

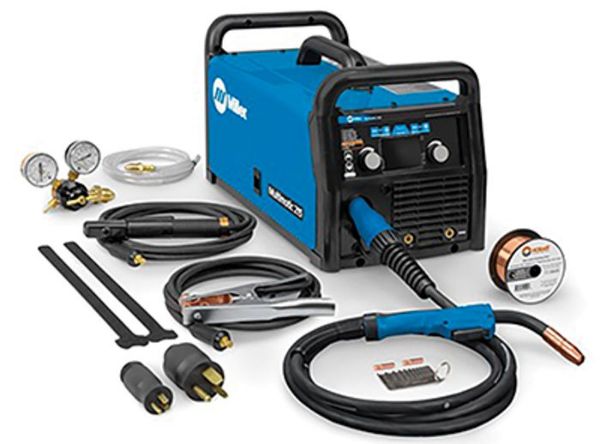

Includes:
Welder. material thickness gauge, 6.5’ power cord and MVP™ adapter plugs for 120V
240V, 10’ MDX™-100 MIG gun, 13’ cable electrode holder and 25 mm Dinse-style connector
10’ work cable and clamp, spool of Hobart® .030“ solid wire
Argon and AR/CO2 mix regulator/flow gauge with hose
Two contact tips for .030" wire, Quick Select™ drive roll for .024" or .030/.035" solid wire
.030/.035 flux cored wire, hook-and-loop cord wraps
Specifications/Rated Output:
Rated Output:
MIG 110A at 19.5V, 60% Duty Cycle; 200A at 24V, 20% Duty Cycle
TIG: 140A at 15.6V, 40% Duty Cycle
Stick: 90A at 23.6V, 40% Duty Cycle
Input Power: 120/240V, 1PH, 50/60HZ
Current Type: DC
Wire Feed Speed: 1.5 m/min – 15.2 m/min - 60 IPM - 600 IPM
